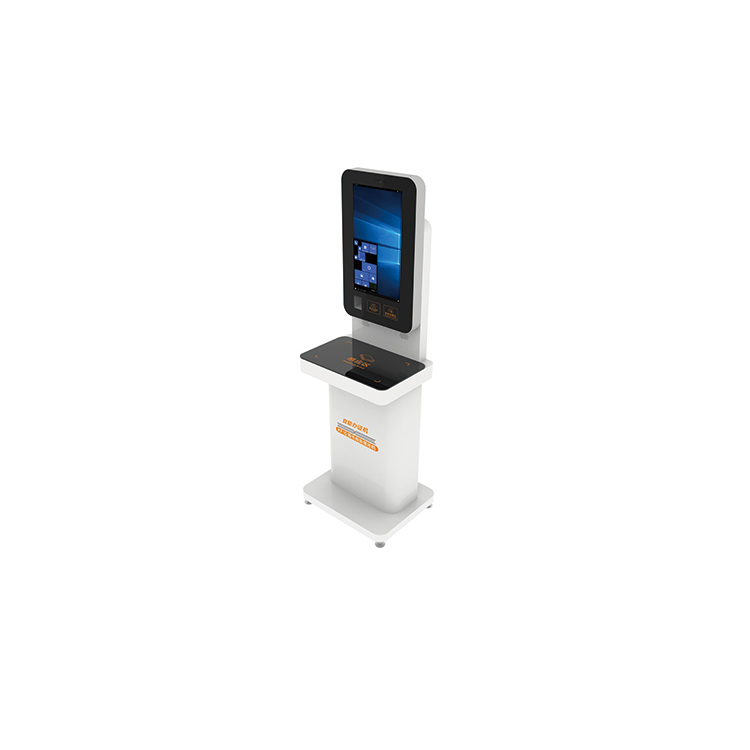

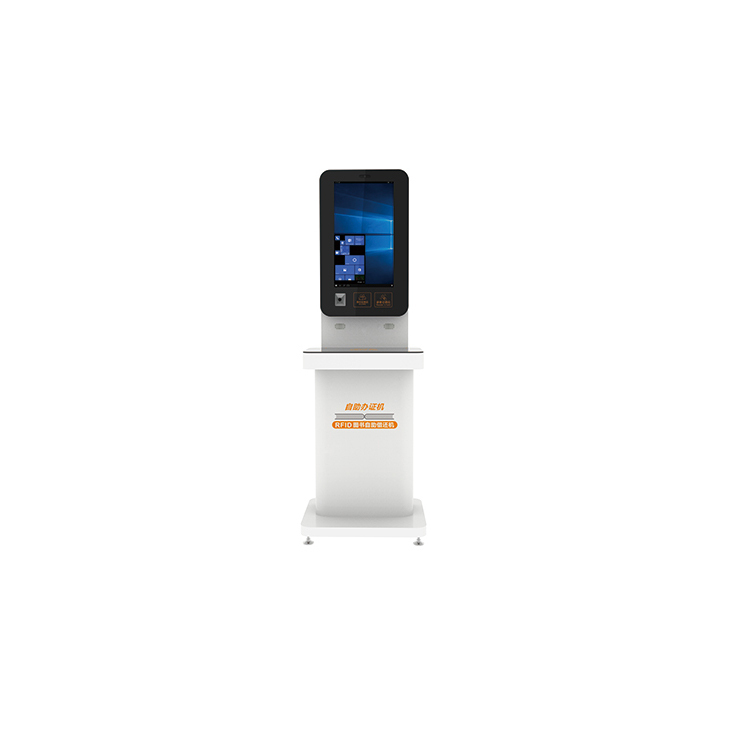

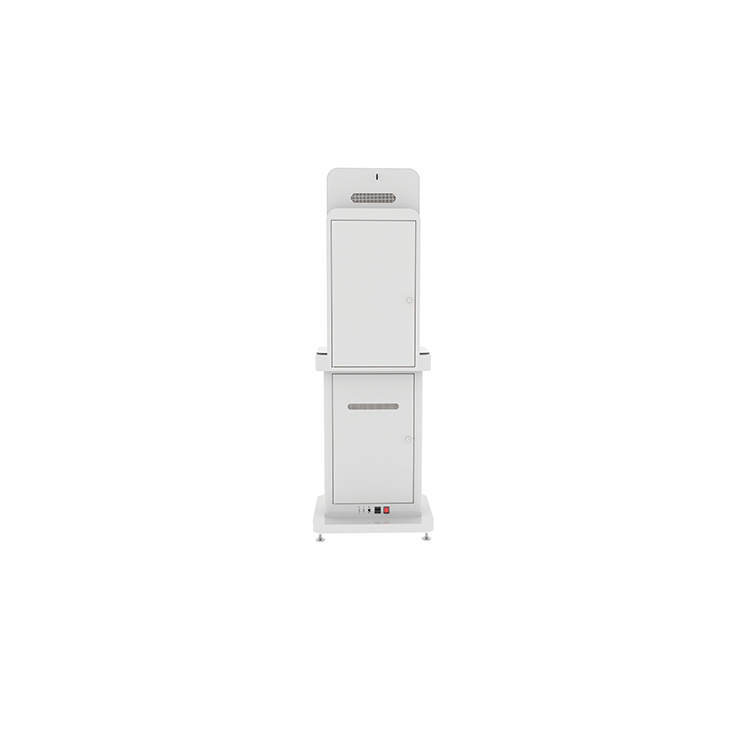

Vertical HF / UHF RFID Terminal is applicable to library, archives office and other UHF RFID tag items read and write, Items taken out and returned, Self-service certificate processing, information registration, payment collection, voucher printing other functions.
It has UHF RFID reader, 2D barcode scanner and HF RFID reader inside for library book lending for students.
Vertical HF / UHF RFID Terminal is applicable to library, archives office and other UHF RFID tag items read and write, Items taken out and returned, Self-service certificate processing, information registration, payment collection, voucher printing other functions
|
| RF SPECIFICATION |
|
|
Identification Method |
UHF / HF |
|
Frequency Range |
UHF:840MHz～960MHz adjustable; |
|
Protocol |
UHF: EPC C1G2, ISO 18000-6B, ISO 18000-6C |
|
Frequency Support |
UHF |
|
Function |
Read & write function, Multiple label identification, Label data filtering, |
|
| HARDWARE SPECIFICATION |
|
|
System |
Windows / Android (optional) |
|
Hardware |
I5 CPU, 4G RAM, 128G SSD / RK3399 CPU, 4GRAM, 16G SSD (optional) |
|
Display |
1920 x 1080, 22-inch capacitive touch screen |
|
Communication |
RJ45 10 / 100Mbps |
|
|FUNCTION SELECTION |
|
|
RFID Read and Write |
Standard |
|
Bar Code |
Standard |
|
QR Code |
Standard |
|
Fingerprint Recognition |
Optional |
|
Face Recognition |
Optional |
|
Sound Light Alarm |
Optional |
|
Keyboard |
Optional |
|
Solar Energy |
Optional |
|
Wireless Network |
WiFi / 4G |
|
| BASIC SPECIFICATION |
|
|
Material |
Carbon steel plate |
|
Power Supply |
AC110-220V 50Hz 150W |
|
Working Humidity |
10%RH~90%RH |
|
Operat Temperature |
0 ºC ~ 60 ºC |
|
Size |
55 x 45 x 160 cm |
