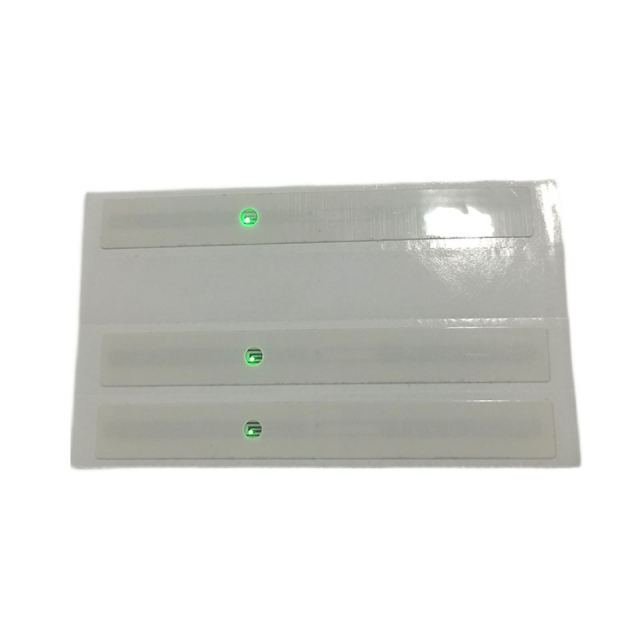

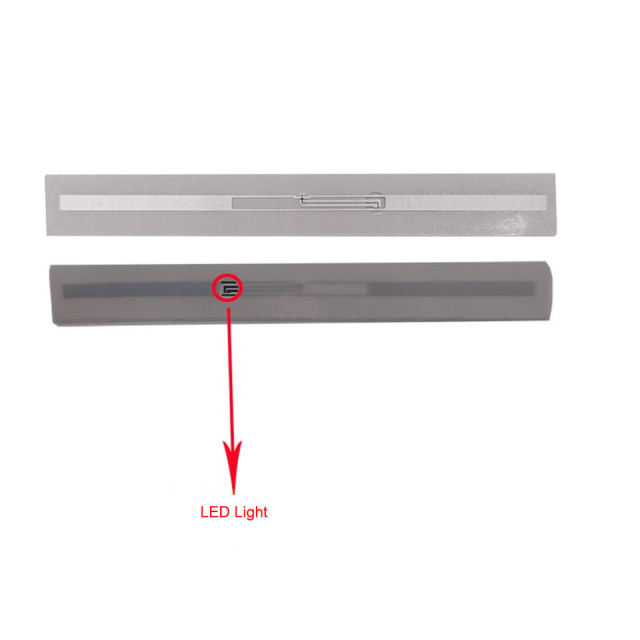

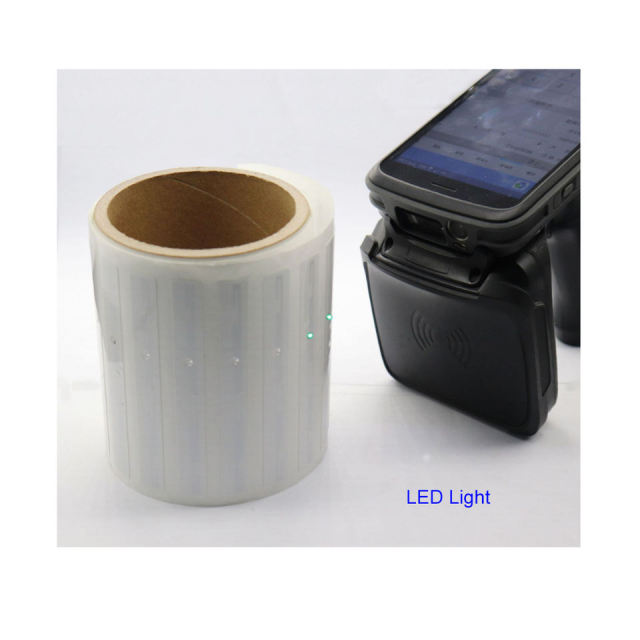

This UHF RFID LED TAG LABEL can be used for file document tracking, book tracking and other asset tracking or search. As its LED can be flashing, when read its data on password memory.
|
Chip |
KX2005XB-L/T |
|
Substrate |
Paper |
|
Size |
100*12*0.2mm |
|
Antenna Process |
Aluminum ETCH(AL10um) |
|
Protocol |
ISO/IEC 18000-6C, EPC Class1 Gen2 |
|
Memory |
TID/UID Upto 192bit+ EPC/Block Upto 240bit+ User 1312bit+ Reserve 64bit |
|
Operating Frequency |
860~960MHz |
|
Operating Mode |
Passive |
|
Write Cycles |
100,000 |
|
Operating Limits |
-40~70℃/ 20%~90% RH |
|
Storage Limits |
-20~50℃ / 20%~90% RH(Without condensation) |
|

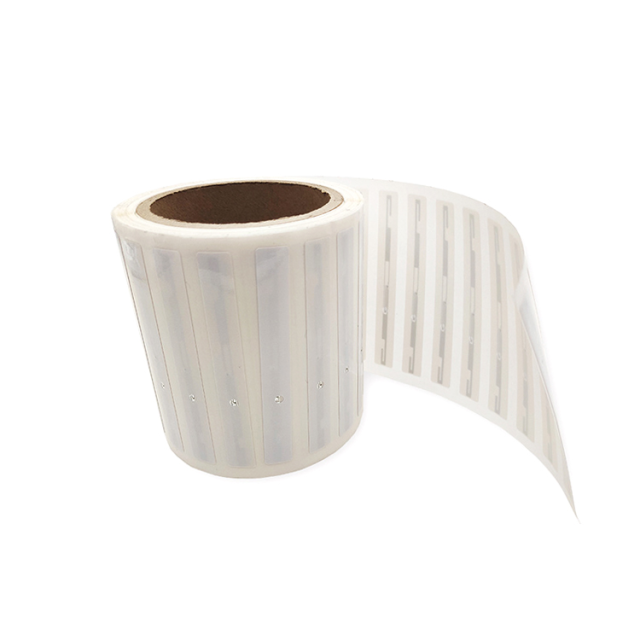

Inlay Format |
in roll |
|
/Reading Range |
850cm (depends on reader) |
|
Delivery Format |
2000±10pcs/roll,4 rolls /carton |
